FilmSample 导出影片

本文最后更新于2020年8月2日 12:26，如果文章内容失效，请反馈给我们，谢谢！

官方的亚当项目 https://assetstore.unity.com/packages/templates/film-sample-project-130415

使用了timeline PostProcessingV2 和recorder

https://www.veyvin.com/wp-admin/post-new.https://download.staging-packages.unity.com/com.unity.recorder/-/

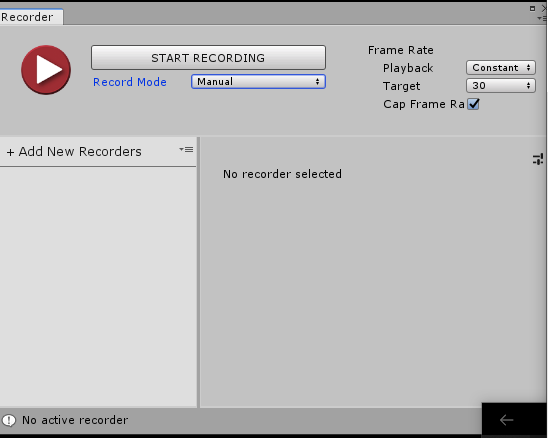

可以在运行状态下手动录制，可以在timeline中录制。

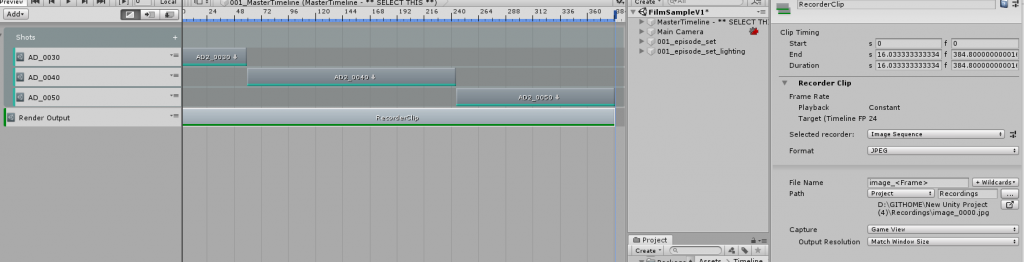

亚当项目使用的是在timeline中录制。可以将导出图片，然后在后期软件中制作movie，也可以直接制作mp4 或 webm。运行一遍场景后就导出了影片或图片。

使用ffmpeg 合成影片命令行如下

PS D:\GITHOME\New Unity Project (4)\Recordings> ffmpeg -r 24 -i 'image_%4d.jpg' -c:v libx264 -vf fps=60 -pix_fmt yuv420p out.mp4
ffmpeg version 3.4 Copyright (c) 2000-2017 the FFmpeg developers
  built with gcc 7.2.0 (GCC)
  configuration: --enable-gpl --enable-version3 --enable-sdl2 --enable-bzlib --enable-fontconfig --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libfreetype --enable-libmp3lame --enable-libopenjpeg --enable-libopus --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libtheora --enable-libtwolame --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libzimg --enable-lzma --enable-zlib --enable-gmp --enable-libvidstab --enable-libvorbis --enable-cuda --enable-cuvid --enable-d3d11va --enable-nvenc --enable-dxva2 --enable-avisynth --enable-libmfx
  libavutil      55. 78.100 / 55. 78.100
  libavcodec     57.107.100 / 57.107.100
  libavformat    57. 83.100 / 57. 83.100
  libavdevice    57. 10.100 / 57. 10.100
  libavfilter     6.107.100 /  6.107.100
  libswscale      4.  8.100 /  4.  8.100
  libswresample   2.  9.100 /  2.  9.100
  libpostproc    54.  7.100 / 54.  7.100
Input #0, image2, from 'image_%4d.jpg':
  Duration: 00:00:15.40, start: 0.000000, bitrate: N/A
    Stream #0:0: Video: mjpeg, yuvj420p(pc, bt470bg/unknown/unknown), 1170x890 &#91;SAR 1:1 DAR 117:89], 25 fps, 25 tbr, 25 tbn, 25 tbc
File 'out.mp4' already exists. Overwrite ? &#91;y/N] y
Stream mapping:
  Stream #0:0 -> #0:0 (mjpeg (native) -> h264 (libx264))
Press &#91;q] to stop, &#91;?] for help
&#91;swscaler @ 00000281e23263a0] deprecated pixel format used, make sure you did set range correctly
&#91;libx264 @ 00000281e023aa20] using SAR=1/1
&#91;libx264 @ 00000281e023aa20] using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2 AVX FMA3 BMI2 AVX2
&#91;libx264 @ 00000281e023aa20] profile High, level 4.2
&#91;libx264 @ 00000281e023aa20] 264 - core 152 r2851 ba24899 - H.264/MPEG-4 AVC codec - Copyleft 2003-2017 - http://www.videolan.org/x264.html - options: cabac=1 ref=3 deblock=1:0:0 analyse=0x3:0x113 me=hex subme=7 psy=1 psy_rd=1.00:0.00 mixed_ref=1 me_range=16 chroma_me=1 trellis=1 8x8dct=1 cqm=0 deadzone=21,11 fast_pskip=1 chroma_qp_offset=-2 threads=12 lookahead_threads=2 sliced_threads=0 nr=0 decimate=1 interlaced=0 bluray_compat=0 constrained_intra=0 bframes=3 b_pyramid=2 b_adapt=1 b_bias=0 direct=1 weightb=1 open_gop=0 weightp=2 keyint=250 keyint_min=25 scenecut=40 intra_refresh=0 rc_lookahead=40 rc=crf mbtree=1 crf=23.0 qcomp=0.60 qpmin=0 qpmax=69 qpstep=4 ip_ratio=1.40 aq=1:1.00
Output #0, mp4, to 'out.mp4':
  Metadata:
    encoder         : Lavf57.83.100
    Stream #0:0: Video: h264 (libx264) (avc1 / 0x31637661), yuv420p, 1170x890 &#91;SAR 1:1 DAR 117:89], q=-1--1, 60 fps, 15360 tbn, 60 tbc
    Metadata:
      encoder         : Lavc57.107.100 libx264
    Side data:
      cpb: bitrate max/min/avg: 0/0/0 buffer size: 0 vbv_delay: -1
frame=  963 fps=118 q=-1.0 Lsize=    4228kB time=00:00:16.00 bitrate=2164.8kbits/s speed=1.96x
video:4216kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: 0.288756%
&#91;libx264 @ 00000281e023aa20] frame I:6     Avg QP:21.51  size: 45020
&#91;libx264 @ 00000281e023aa20] frame P:243   Avg QP:24.94  size: 13276
&#91;libx264 @ 00000281e023aa20] frame B:714   Avg QP:26.75  size:  1149
&#91;libx264 @ 00000281e023aa20] consecutive B-frames:  0.9%  0.6%  0.0% 98.4%
&#91;libx264 @ 00000281e023aa20] mb I  I16..4: 16.3% 81.8%  1.9%
&#91;libx264 @ 00000281e023aa20] mb P  I16..4:  6.1% 12.6%  0.3%  P16..4: 33.7%  8.0%  3.4%  0.0%  0.0%    skip:35.9%
&#91;libx264 @ 00000281e023aa20] mb B  I16..4:  0.2%  0.4%  0.0%  B16..8: 14.2%  0.6%  0.1%  direct: 0.4%  skip:84.1%  L0:43.2% L1:52.8% BI: 4.0%
&#91;libx264 @ 00000281e023aa20] 8x8 transform intra:67.7% inter:85.1%
&#91;libx264 @ 00000281e023aa20] coded y,uvDC,uvAC intra: 34.3% 32.2% 4.3% inter: 4.4% 4.4% 0.1%
&#91;libx264 @ 00000281e023aa20] i16 v,h,dc,p: 20% 53%  4% 23%
&#91;libx264 @ 00000281e023aa20] i8 v,h,dc,ddl,ddr,vr,hd,vl,hu: 26% 27% 30%  2%  3%  3%  3%  3%  2%
&#91;libx264 @ 00000281e023aa20] i4 v,h,dc,ddl,ddr,vr,hd,vl,hu: 28% 24% 14%  4%  7%  8%  7%  5%  3%
&#91;libx264 @ 00000281e023aa20] i8c dc,h,v,p: 60% 20% 18%  2%
&#91;libx264 @ 00000281e023aa20] Weighted P-Frames: Y:0.0% UV:0.0%
&#91;libx264 @ 00000281e023aa20] ref P L0: 61.3% 22.4% 13.5%  2.9%
&#91;libx264 @ 00000281e023aa20] ref B L0: 92.2%  6.2%  1.6%
&#91;libx264 @ 00000281e023aa20] ref B L1: 98.5%  1.5%
&#91;libx264 @ 00000281e023aa20] kb/s:2151.50

PS D:\GITHOME\New Unity Project (4)\Recordings> ffmpeg -r 24 -i 'image_%4d.jpg' -c:v libx264 -vf fps=60 -pix_fmt yuv420p out.mp4

built with gcc 7.2.0 (GCC)

configuration: --enable-gpl --enable-version3 --enable-sdl2 --enable-bzlib --enable-fontconfig --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libfreetype --enable-libmp3lame --enable-libopenjpeg --enable-libopus --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libtheora --enable-libtwolame --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libzimg --enable-lzma --enable-zlib --enable-gmp --enable-libvidstab --enable-libvorbis --enable-cuda --enable-cuvid --enable-d3d11va --enable-nvenc --enable-dxva2 --enable-avisynth --enable-libmfx

libavutil 55. 78.100 / 55. 78.100

libavcodec 57.107.100 / 57.107.100

libavformat 57. 83.100 / 57. 83.100

libavdevice 57. 10.100 / 57. 10.100

libavfilter 6.107.100 / 6.107.100

libswscale 4. 8.100 / 4. 8.100

libswresample 2. 9.100 / 2. 9.100

libpostproc 54. 7.100 / 54. 7.100

Input #0, image2, from 'image_%4d.jpg':

Duration: 00:00:15.40, start: 0.000000, bitrate: N/A

Stream #0:0: Video: mjpeg, yuvj420p(pc, bt470bg/unknown/unknown), 1170x890 [SAR 1:1 DAR 117:89], 25 fps, 25 tbr, 25 tbn, 25 tbc

File 'out.mp4' already exists. Overwrite ? [y/N] y

Stream mapping:

Stream #0:0 -> #0:0 (mjpeg (native) -> h264 (libx264))

Press [q] to stop, [?] for help

[swscaler @ 00000281e23263a0] deprecated pixel format used, make sure you did set range correctly

[libx264 @ 00000281e023aa20] using SAR=1/1

[libx264 @ 00000281e023aa20] using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2 AVX FMA3 BMI2 AVX2

[libx264 @ 00000281e023aa20] profile High, level 4.2

[libx264 @ 00000281e023aa20] 264 - core 152 r2851 ba24899 - H.264/MPEG-4 AVC codec - Copyleft 2003-2017 - http://www.videolan.org/x264.html - options: cabac=1 ref=3 deblock=1:0:0 analyse=0x3:0x113 me=hex subme=7 psy=1 psy_rd=1.00:0.00 mixed_ref=1 me_range=16 chroma_me=1 trellis=1 8x8dct=1 cqm=0 deadzone=21,11 fast_pskip=1 chroma_qp_offset=-2 threads=12 lookahead_threads=2 sliced_threads=0 nr=0 decimate=1 interlaced=0 bluray_compat=0 constrained_intra=0 bframes=3 b_pyramid=2 b_adapt=1 b_bias=0 direct=1 weightb=1 open_gop=0 weightp=2 keyint=250 keyint_min=25 scenecut=40 intra_refresh=0 rc_lookahead=40 rc=crf mbtree=1 crf=23.0 qcomp=0.60 qpmin=0 qpmax=69 qpstep=4 ip_ratio=1.40 aq=1:1.00

Output #0, mp4, to 'out.mp4':

Metadata:

encoder : Lavf57.83.100

Stream #0:0: Video: h264 (libx264) (avc1 / 0x31637661), yuv420p, 1170x890 [SAR 1:1 DAR 117:89], q=-1--1, 60 fps, 15360 tbn, 60 tbc

Metadata:

encoder : Lavc57.107.100 libx264

Side data:

cpb: bitrate max/min/avg: 0/0/0 buffer size: 0 vbv_delay: -1

frame= 963 fps=118 q=-1.0 Lsize= 4228kB time=00:00:16.00 bitrate=2164.8kbits/s speed=1.96x

video:4216kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: 0.288756%

[libx264 @ 00000281e023aa20] frame I:6 Avg QP:21.51 size: 45020

[libx264 @ 00000281e023aa20] frame P:243 Avg QP:24.94 size: 13276

[libx264 @ 00000281e023aa20] frame B:714 Avg QP:26.75 size: 1149

[libx264 @ 00000281e023aa20] consecutive B-frames: 0.9% 0.6% 0.0% 98.4%

[libx264 @ 00000281e023aa20] mb I I16..4: 16.3% 81.8% 1.9%

[libx264 @ 00000281e023aa20] mb P I16..4: 6.1% 12.6% 0.3% P16..4: 33.7% 8.0% 3.4% 0.0% 0.0% skip:35.9%

[libx264 @ 00000281e023aa20] mb B I16..4: 0.2% 0.4% 0.0% B16..8: 14.2% 0.6% 0.1% direct: 0.4% skip:84.1% L0:43.2% L1:52.8% BI: 4.0%

[libx264 @ 00000281e023aa20] 8x8 transform intra:67.7% inter:85.1%

[libx264 @ 00000281e023aa20] coded y,uvDC,uvAC intra: 34.3% 32.2% 4.3% inter: 4.4% 4.4% 0.1%

[libx264 @ 00000281e023aa20] i16 v,h,dc,p: 20% 53% 4% 23%

[libx264 @ 00000281e023aa20] i8 v,h,dc,ddl,ddr,vr,hd,vl,hu: 26% 27% 30% 2% 3% 3% 3% 3% 2%

[libx264 @ 00000281e023aa20] i4 v,h,dc,ddl,ddr,vr,hd,vl,hu: 28% 24% 14% 4% 7% 8% 7% 5% 3%

[libx264 @ 00000281e023aa20] i8c dc,h,v,p: 60% 20% 18% 2%

[libx264 @ 00000281e023aa20] Weighted P-Frames: Y:0.0% UV:0.0%

[libx264 @ 00000281e023aa20] ref P L0: 61.3% 22.4% 13.5% 2.9%

[libx264 @ 00000281e023aa20] ref B L0: 92.2% 6.2% 1.6%

[libx264 @ 00000281e023aa20] ref B L1: 98.5% 1.5%

[libx264 @ 00000281e023aa20] kb/s:2151.50

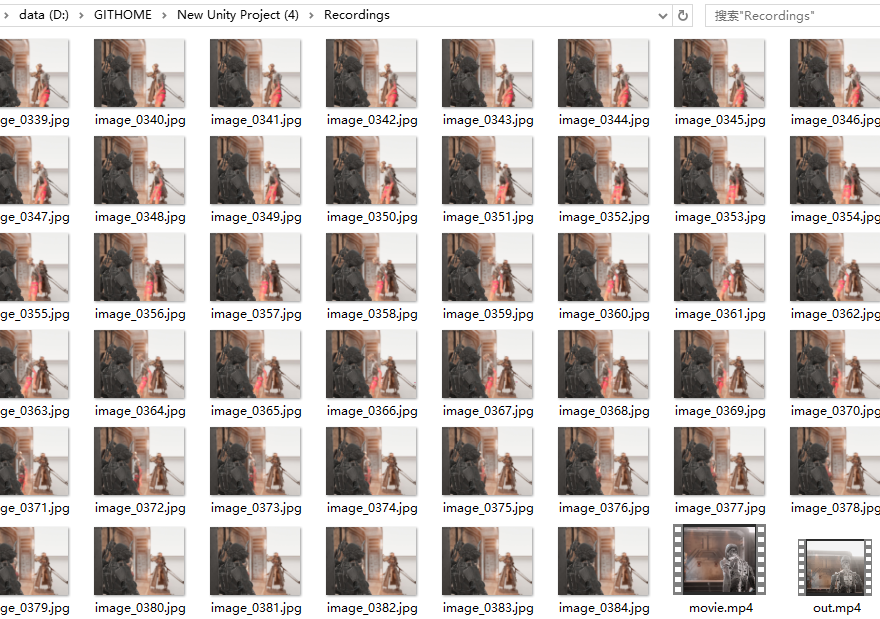

下方movie是unity导出的，out.mp4 是ffmpeg导出的
