URP 中实现ZTest

文章目录[隐藏]

本文最后更新于2020年8月20日 16:48，如果文章内容失效，请反馈给我们，谢谢！

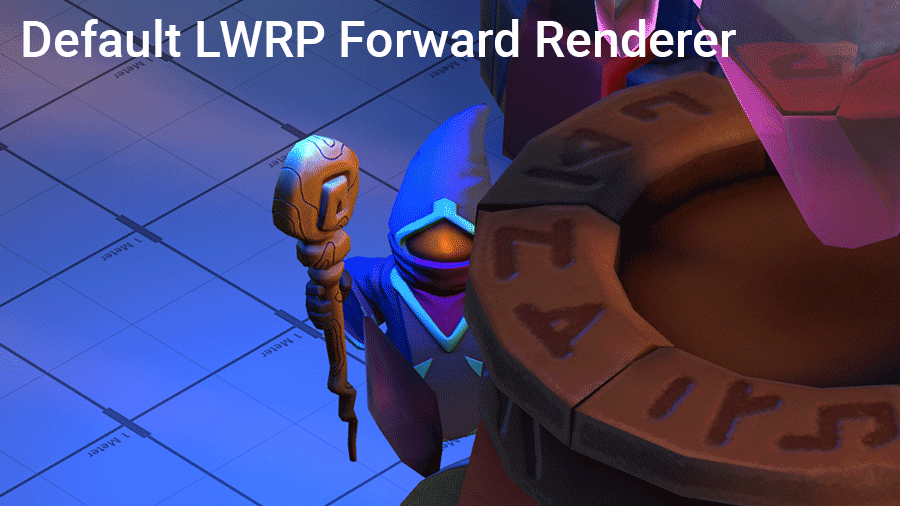

shader转成URP shader时，发现ZTest在URP中无效，在官网demo中发现URP shader中如果想要实现ZTest, Stencil等效果需要配合 renderer feature。

原Shader

// Upgrade NOTE: replaced '_Object2World' with 'unity_ObjectToWorld'
//空间角度（TODO钝角没有考虑）
Shader "ZjwUnlit/AngleShader"
{
    Properties
    {
		_Color("Color",Color)=(1,1,1,1)
		_Origin("Origin",vector)=(1,1,1,1)
		_Side1Pos("Side1Pos",vector)=(1,1,1,1)
		_Side2Pos("Side2Pos",vector)=(1,1,1,1)
		_OutlineColor("OutLineColor",Color)=(1,1,1,1)
		_OutlineRange("OutlineRange",Range(0,0.1))=0.01
		[MaterialToggle]_IsOutline("IsOutline",int) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Geometry" }
        LOD 100

         Pass
        {
			Cull Off
			ZTest Greater
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
				float2 uv:TEXCOORD0;
            };

            struct v2f
            {
                float4 vertex : SV_POSITION;
				float4 worldPos:TEXCOORD0;
				float2 uv : TEXCOORD1;
            };
			fixed4 _Color;
			fixed4 _Origin;
			fixed4 _Side1Pos;
			fixed4 _Side2Pos;
			fixed4 _OutlineColor;
			fixed _OutlineRange;
			bool _IsOutline;

			bool CheckSide(float4 worldPos)
			{
				float3 ao=_Side1Pos-_Origin;
				float3 bo=_Side2Pos-_Origin;
				float3 normal=cross(bo,ao);
				fixed3 _Side1Normal=cross(normal,ao);
				fixed3 _Side2Normal=cross(bo,normal);
				float4 clip1Pos=(_Origin+_Side1Pos)/2;
				float4 clip2Pos=(_Origin+_Side2Pos)/2;
				float result1=dot(worldPos-clip1Pos,_Side1Normal);
				float result2=dot(worldPos-clip2Pos,_Side2Normal);
				return result1>0||result2>0;
			}
            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
				o.worldPos=mul(unity_ObjectToWorld,v.vertex);
				o.uv=v.uv.xy;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
				bool result=CheckSide(i.worldPos);
				if(result)
					discard;
				float x = i.uv.x;
                float y = i.uv.y;
                float dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));
				fixed tempOutline = _IsOutline ? _OutlineRange : 0;
				if (dis > 0.5 )
					discard;
				return dis > 0.5 - tempOutline ? _OutlineColor : _Color;
            }
            ENDCG
        }
	     Pass
        {
			Cull Off
			ZTest Always
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
				float2 uv:TEXCOORD0;
            };

            struct v2f
            {
                float4 vertex : SV_POSITION;
				float4 worldPos:TEXCOORD0;
				float2 uv : TEXCOORD1;
            };
			fixed4 _Color;
			fixed4 _Origin;
			fixed4 _Side1Pos;
			fixed4 _Side2Pos;
			fixed4 _OutlineColor;
			fixed _OutlineRange;
			bool _IsOutline;

			bool CheckSide(float4 worldPos)
			{
				float3 ao=_Side1Pos-_Origin;
				float3 bo=_Side2Pos-_Origin;
				float3 normal=cross(bo,ao);
				fixed3 _Side1Normal=cross(normal,ao);
				fixed3 _Side2Normal=cross(bo,normal);
				float4 clip1Pos=(_Origin+_Side1Pos)/2;
				float4 clip2Pos=(_Origin+_Side2Pos)/2;
				float result1=dot(worldPos-clip1Pos,_Side1Normal);
				float result2=dot(worldPos-clip2Pos,_Side2Normal);
				return result1>0||result2>0;
			}
            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
				o.worldPos=mul(unity_ObjectToWorld,v.vertex);
				o.uv=v.uv.xy;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
				bool result=CheckSide(i.worldPos);
				if(result)
					discard;

				float x = i.uv.x;
                float y = i.uv.y;
                float dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));

				fixed tempOutline = _IsOutline ? _OutlineRange : 0;
                if (dis > 0.5)
                    discard;
				return dis > 0.5 - tempOutline ? _OutlineColor : _Color;
            }
            ENDCG
        }
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

// Upgrade NOTE: replaced '_Object2World' with 'unity_ObjectToWorld'

//空间角度（TODO钝角没有考虑）

Shader "ZjwUnlit/AngleShader"

{

Properties

{

_Color("Color",Color)=(1,1,1,1)

_Origin("Origin",vector)=(1,1,1,1)

_Side1Pos("Side1Pos",vector)=(1,1,1,1)

_Side2Pos("Side2Pos",vector)=(1,1,1,1)

_OutlineColor("OutLineColor",Color)=(1,1,1,1)

_OutlineRange("OutlineRange",Range(0,0.1))=0.01

[MaterialToggle]_IsOutline("IsOutline",int) = 0

}

SubShader

{

Tags { "RenderType"="Geometry" }

LOD 100

Pass

{

Cull Off

ZTest Greater

CGPROGRAM

#pragma vertex vert

#pragma fragment frag

#include "UnityCG.cginc"

struct appdata

{

float4 vertex : POSITION;

float2 uv:TEXCOORD0;

};

struct v2f

{

float4 vertex : SV_POSITION;

float4 worldPos:TEXCOORD0;

float2 uv : TEXCOORD1;

};

fixed4 _Color;

fixed4 _Origin;

fixed4 _Side1Pos;

fixed4 _Side2Pos;

fixed4 _OutlineColor;

fixed _OutlineRange;

bool _IsOutline;

bool CheckSide(float4 worldPos)

{

float3 ao=_Side1Pos-_Origin;

float3 bo=_Side2Pos-_Origin;

float3 normal=cross(bo,ao);

fixed3 _Side1Normal=cross(normal,ao);

fixed3 _Side2Normal=cross(bo,normal);

float4 clip1Pos=(_Origin+_Side1Pos)/2;

float4 clip2Pos=(_Origin+_Side2Pos)/2;

float result1=dot(worldPos-clip1Pos,_Side1Normal);

float result2=dot(worldPos-clip2Pos,_Side2Normal);

return result1>0||result2>0;

}

v2f vert (appdata v)

{

v2f o;

o.vertex = UnityObjectToClipPos(v.vertex);

o.worldPos=mul(unity_ObjectToWorld,v.vertex);

o.uv=v.uv.xy;

return o;

}

fixed4 frag (v2f i) : SV_Target

{

bool result=CheckSide(i.worldPos);

if(result)

discard;

float x = i.uv.x;

float y = i.uv.y;

float dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));

fixed tempOutline = _IsOutline ? _OutlineRange : 0;

if (dis > 0.5 )

discard;

return dis > 0.5 - tempOutline ? _OutlineColor : _Color;

}

ENDCG

}

Pass

{

Cull Off

ZTest Always

CGPROGRAM

#pragma vertex vert

#pragma fragment frag

#include "UnityCG.cginc"

struct appdata

{

float4 vertex : POSITION;

float2 uv:TEXCOORD0;

};

struct v2f

{

float4 vertex : SV_POSITION;

float4 worldPos:TEXCOORD0;

float2 uv : TEXCOORD1;

};

fixed4 _Color;

fixed4 _Origin;

fixed4 _Side1Pos;

fixed4 _Side2Pos;

fixed4 _OutlineColor;

fixed _OutlineRange;

bool _IsOutline;

bool CheckSide(float4 worldPos)

{

float3 ao=_Side1Pos-_Origin;

float3 bo=_Side2Pos-_Origin;

float3 normal=cross(bo,ao);

fixed3 _Side1Normal=cross(normal,ao);

fixed3 _Side2Normal=cross(bo,normal);

float4 clip1Pos=(_Origin+_Side1Pos)/2;

float4 clip2Pos=(_Origin+_Side2Pos)/2;

float result1=dot(worldPos-clip1Pos,_Side1Normal);

float result2=dot(worldPos-clip2Pos,_Side2Normal);

return result1>0||result2>0;

}

v2f vert (appdata v)

{

v2f o;

o.vertex = UnityObjectToClipPos(v.vertex);

o.worldPos=mul(unity_ObjectToWorld,v.vertex);

o.uv=v.uv.xy;

return o;

}

fixed4 frag (v2f i) : SV_Target

{

bool result=CheckSide(i.worldPos);

if(result)

discard;

float x = i.uv.x;

float y = i.uv.y;

float dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));

fixed tempOutline = _IsOutline ? _OutlineRange : 0;

if (dis > 0.5)

discard;

return dis > 0.5 - tempOutline ? _OutlineColor : _Color;

}

ENDCG

}

转换为URP shader

Shader "ZjwUnlit/AngleShader1"
{
    Properties
    {
		_Color("Color",Color)=(1,1,1,1)
		_Origin("Origin",vector)=(1,1,1,1)
		_Side1Pos("Side1Pos",vector)=(1,1,1,1)
		_Side2Pos("Side2Pos",vector)=(1,1,1,1)
		_OutlineColor("OutLineColor",Color)=(1,1,1,1)
		_OutlineRange("OutlineRange",Range(0,0.1))=0.01
		[MaterialToggle]_IsOutline("IsOutline",int) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" "RenderPipeline" = "UniversalPipeline" }
        LOD 100
	Pass
        {

			HLSLPROGRAM

            #pragma vertex vert
            #pragma fragment frag
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Input.hlsl"
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
			#include "Packages/com.unity.render-pipelines.core/ShaderLibrary/SpaceTransforms.hlsl"

            struct appdata
            {
                half4 vertex : POSITION;
				half2 uv:TEXCOORD0;
            };

            struct v2f
            {
                half4 vertex : SV_POSITION;
				half4 worldPos:TEXCOORD0;
				half2 uv : TEXCOORD1;
            };
			half4 _Color;
			half4 _Origin;
			half4 _Side1Pos;
			half4 _Side2Pos;
			half4 _OutlineColor;
			half _OutlineRange;
			bool _IsOutline;

			bool CheckSide(half4 worldPos)
			{
				half3 ao=(_Side1Pos-_Origin).xyz;
				half3 bo=(_Side2Pos-_Origin).xyz;
				half3 normal=cross(bo,ao);
				half3 _Side1Normal=cross(normal,ao);
				half3 _Side2Normal=cross(bo,normal);
				half4 clip1Pos=(_Origin+_Side1Pos)/2;
				half4 clip2Pos=(_Origin+_Side2Pos)/2;
				half result1=dot((worldPos-clip1Pos).xyz,_Side1Normal);
				half result2=dot((worldPos-clip2Pos).xyz,_Side2Normal);
				return result1>0||result2>0;
			}

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = TransformObjectToHClip(v.vertex.xyz);
				o.worldPos=mul(unity_ObjectToWorld,v.vertex);
				o.uv=v.uv.xy;
                return o;
            }

			half4 frag (v2f i) : SV_Target
            {
				bool result=CheckSide(i.worldPos);
				if(result)
					discard;
				half x = i.uv.x;
                half y = i.uv.y;
                half dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));
				half tempOutline = _IsOutline ? _OutlineRange : 0;
				if (dis > 0.5 )
					discard;
				return dis > 0.5 - tempOutline ? _OutlineColor : _Color;
            }
			ENDHLSL
        }
    }
}

Shader "ZjwUnlit/AngleShader1"

{

Properties

{

_Color("Color",Color)=(1,1,1,1)

_Origin("Origin",vector)=(1,1,1,1)

_Side1Pos("Side1Pos",vector)=(1,1,1,1)

_Side2Pos("Side2Pos",vector)=(1,1,1,1)

_OutlineColor("OutLineColor",Color)=(1,1,1,1)

_OutlineRange("OutlineRange",Range(0,0.1))=0.01

[MaterialToggle]_IsOutline("IsOutline",int) = 0

}

SubShader

{

Tags { "RenderType"="Opaque" "RenderPipeline" = "UniversalPipeline" }

LOD 100

Pass

{

HLSLPROGRAM

#pragma vertex vert

#pragma fragment frag

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Input.hlsl"

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

#include "Packages/com.unity.render-pipelines.core/ShaderLibrary/SpaceTransforms.hlsl"

struct appdata

{

half4 vertex : POSITION;

half2 uv:TEXCOORD0;

};

struct v2f

{

half4 vertex : SV_POSITION;

half4 worldPos:TEXCOORD0;

half2 uv : TEXCOORD1;

};

half4 _Color;

half4 _Origin;

half4 _Side1Pos;

half4 _Side2Pos;

half4 _OutlineColor;

half _OutlineRange;

bool _IsOutline;

bool CheckSide(half4 worldPos)

{

half3 ao=(_Side1Pos-_Origin).xyz;

half3 bo=(_Side2Pos-_Origin).xyz;

half3 normal=cross(bo,ao);

half3 _Side1Normal=cross(normal,ao);

half3 _Side2Normal=cross(bo,normal);

half4 clip1Pos=(_Origin+_Side1Pos)/2;

half4 clip2Pos=(_Origin+_Side2Pos)/2;

half result1=dot((worldPos-clip1Pos).xyz,_Side1Normal);

half result2=dot((worldPos-clip2Pos).xyz,_Side2Normal);

return result1>0||result2>0;

}

v2f vert (appdata v)

{

v2f o;

o.vertex = TransformObjectToHClip(v.vertex.xyz);

o.worldPos=mul(unity_ObjectToWorld,v.vertex);

o.uv=v.uv.xy;

return o;

}

half4 frag (v2f i) : SV_Target

{

bool result=CheckSide(i.worldPos);

if(result)

discard;

half x = i.uv.x;

half y = i.uv.y;

half dis = sqrt(pow((0.5 - x), 2) + pow((0.5 - y), 2));

half tempOutline = _IsOutline ? _OutlineRange : 0;

if (dis > 0.5 )

discard;

return dis > 0.5 - tempOutline ? _OutlineColor : _Color;

}

ENDHLSL

}
